SKYBRIDGE-V2

Wi-Fi Art-Net to Wireless DMX Converter

Features

Specification

Downloads

Gallery

MULTI-PROTOCOL

SKYBRIDGE-V2 combines sACN, Art-Net & LumenRadio into a single device.

REAL-TIME TRANSLATION

Dynamic protocol translation in real-time, with no delay.

COMPLEX, SIMPLIFIED

Control elaborate lighting rigs. Use any Art-Net control device with any LumenRadio light fixture or receiver.

WIRED & WIRLESS

LumenRadio transmitter & DMX XLR connector ensures seamless integration into any workflow setup.

5V USB POWER

Power SYKBRIDGE-V2 with any 5V USB source via the USB-C port.

Specification

Features

Specification

Wireless Protocol
Protocol sACN, Art-Net / LumenRadio
Operational Frequency 5GHz (Wi-Fi) / 2.4GHz (LumenRadio)
Range 30m (Wi-Fi) / 100m (LumenRadio)
Power
USB Type-C 5V
Power Consumption 1.8W
Controls
1x “SYNC” Button Synchronise SKYBRIDGE with DMX Receivers/Lights
1x “RESET” Button Reset SKYBRIDGE to Factory Default Settings

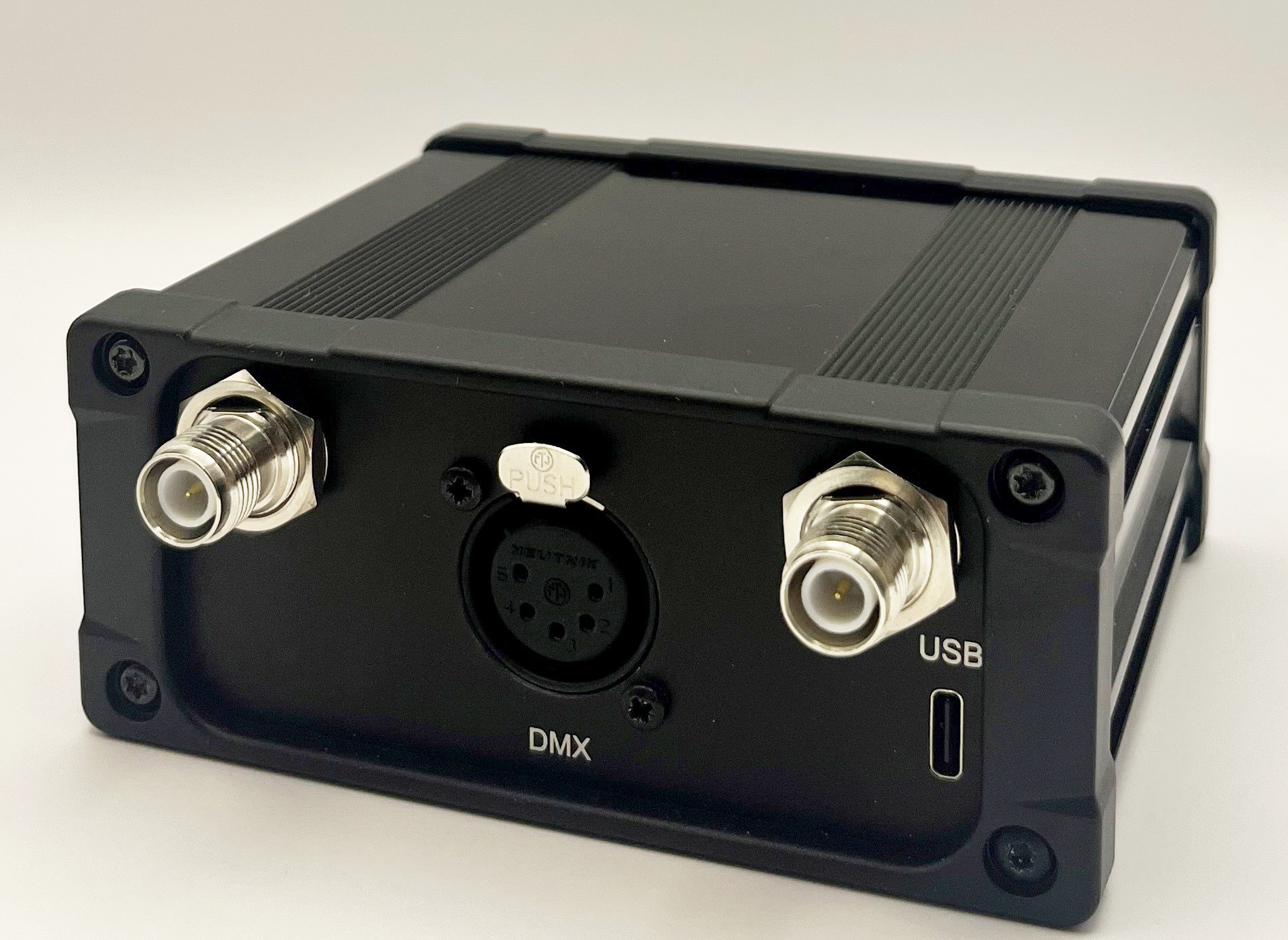

Connectors
1x DMX XLR 5-Pin Female
1x USB Type-C Power Input Female
2x Antennae

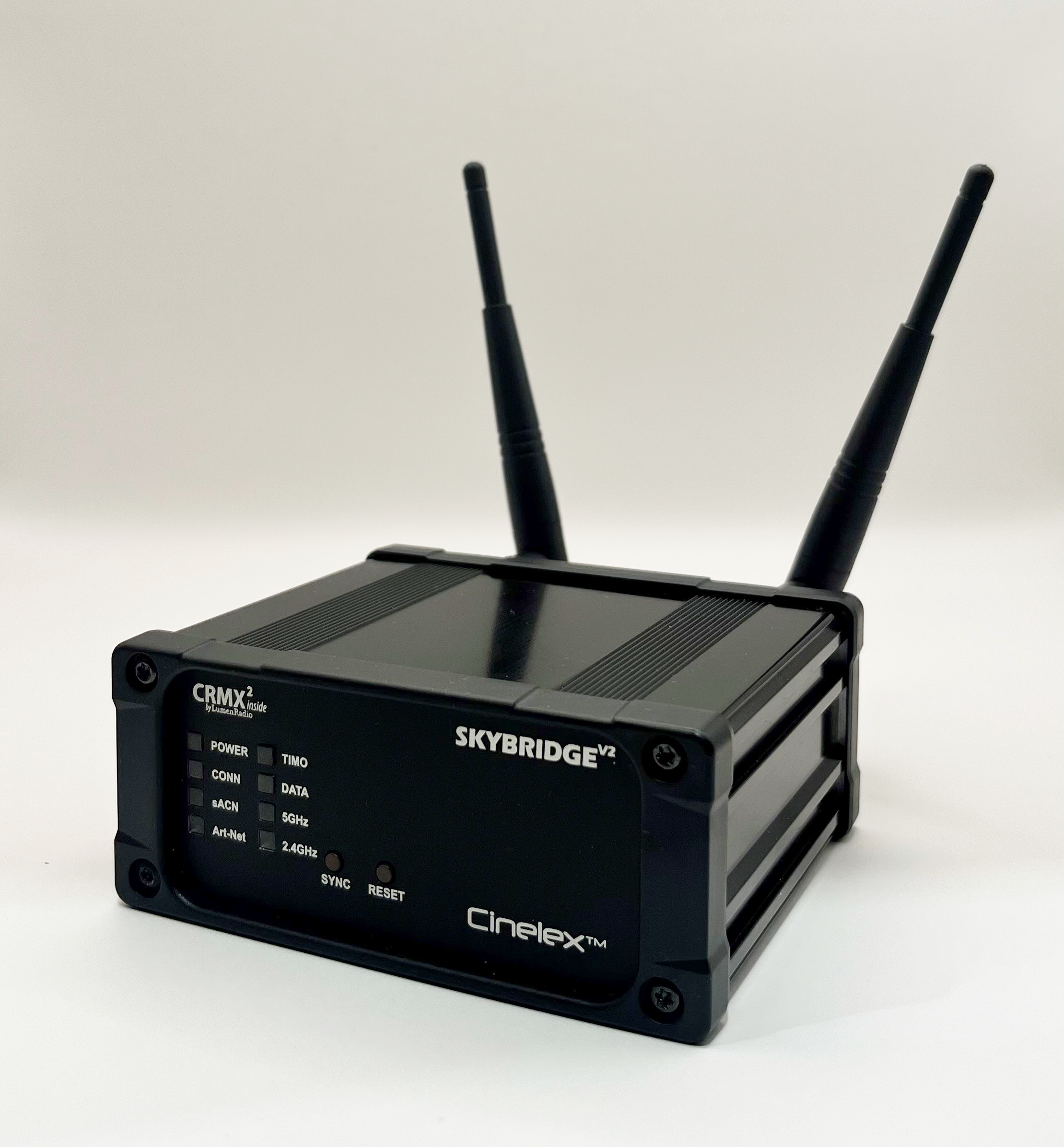

LED Indicators
1x “POWER” LED Power Input Confirmation
1x “CONNECTION” LED Connection Status
1x “sACN” LED sACN Mode Enabled
1x “ART-NET” LED Art-Net Mode Enabled
1x “DATA” LED Data Transmission Status
1x “5GHz” LED Indicates Wi-Fi Network Status
1x “2.4GHz” LED Indicates LumenRadio Connectivity
Size (without Antennae)
Weight 295g
Dimensions 145mm x 140mm x 41mm (L x W x D)

Downloads

Specification

Downloads

SKYBRIDGE Product & Specification Sheet
