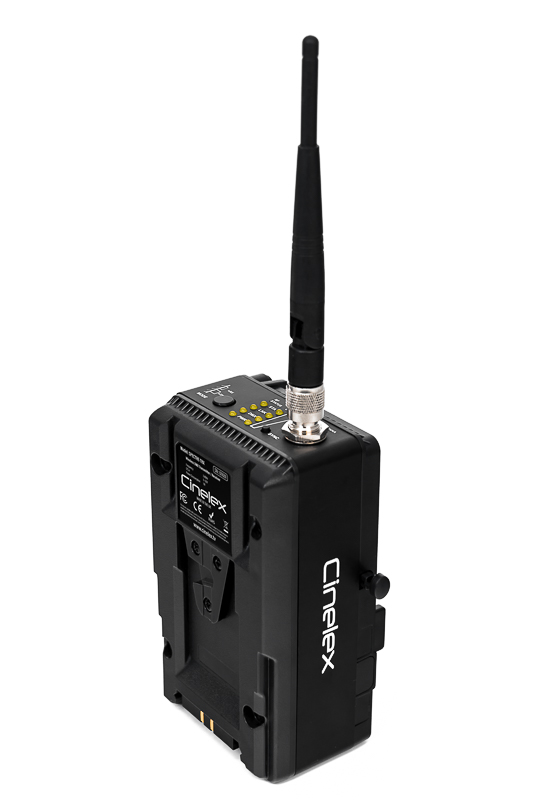

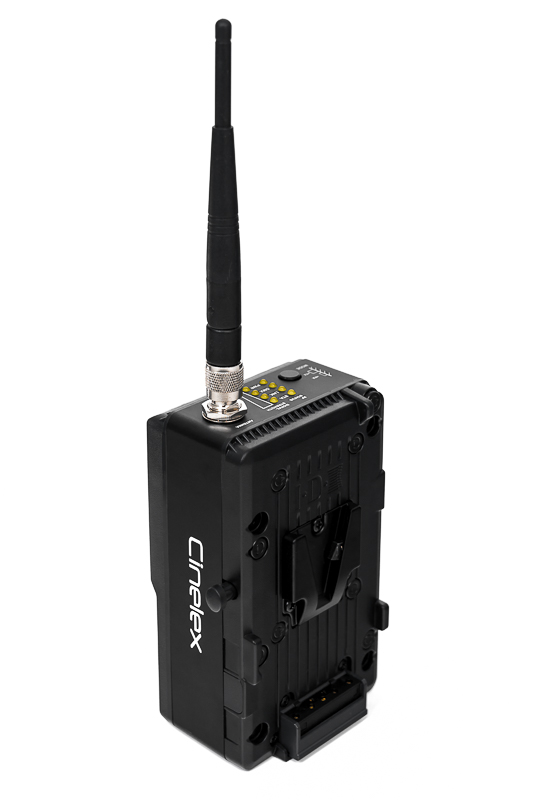

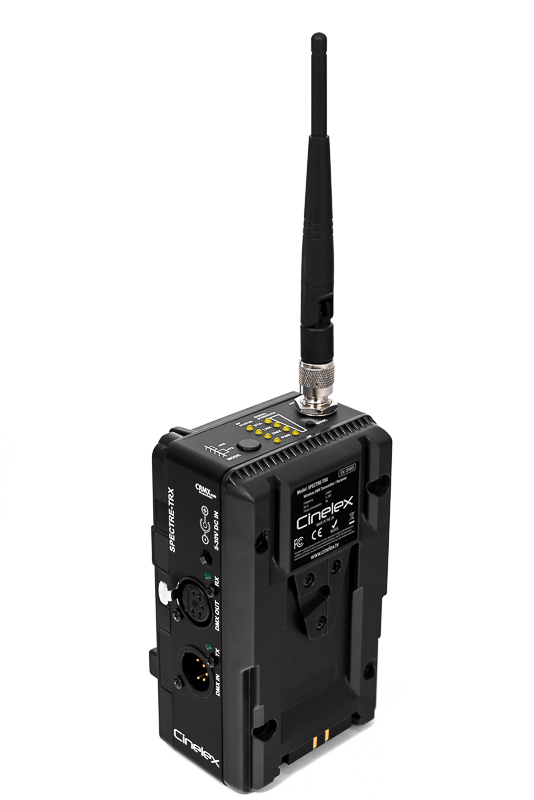

TRX
All-In-One Wireless DMX Transmitter & Receiver
UNIVERSALLY COMPATIBLE
Full-size DMX connectors ensure seamless integration with any lighting rig.
DUAL-FUNCTION (TX/RX)
Switch between TX & RX modes – no need for dedicated units.
SIMPLE SETUP
Link to a LumenRadio transmitter or receiver with a single button-press.
MAINS OR BATTERY POWERED
5-30V power input enables operation from mains electricity or batteries.
PROFESSIONAL-READY

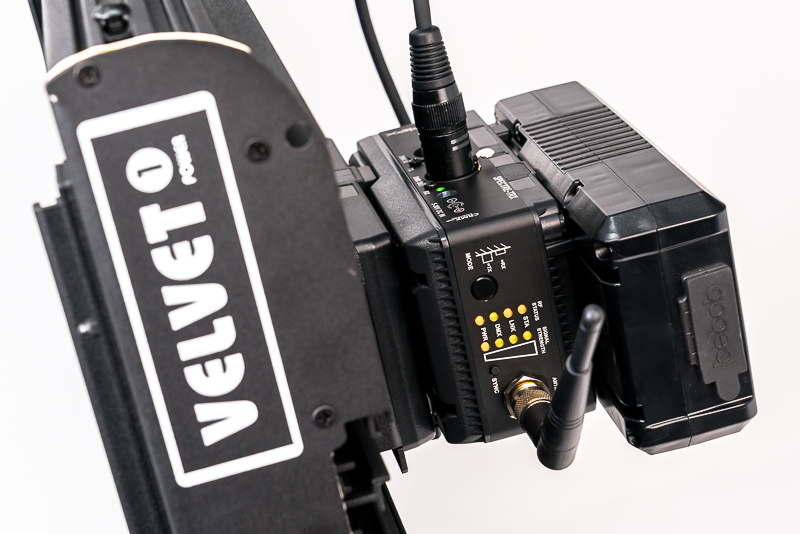

Robust design, constructed with extruded aluminium – built to withstand tough rental & on-set environments.
Specification
| Wireless Protocol | |
|---|---|
| Protocol | LumenRadio |
| Operational Frequency | 2.4GHz (2402-2480MHz) |
| Range | Up to 100m (environment dependent) |
| DMX Standards | DMX512, DMX512 (1990) & DMX512-A |
| RDM | ANSI E1.20 (in Receive mode only) |
| Power | |
| DC-in | 5-30V |
| Power Consumption | 1W |
| Controls | |
| 1x TX/RX Toggle Select | Switch Between ‘Transmit’ & ‘Receive’ Modes |
| 1x “SYNC” Button | Synchronise TRX with Transmitter or Receiver |

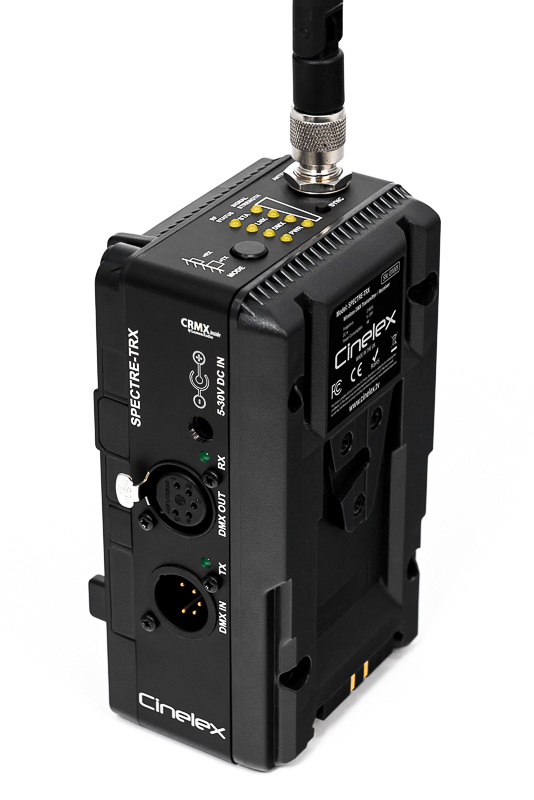

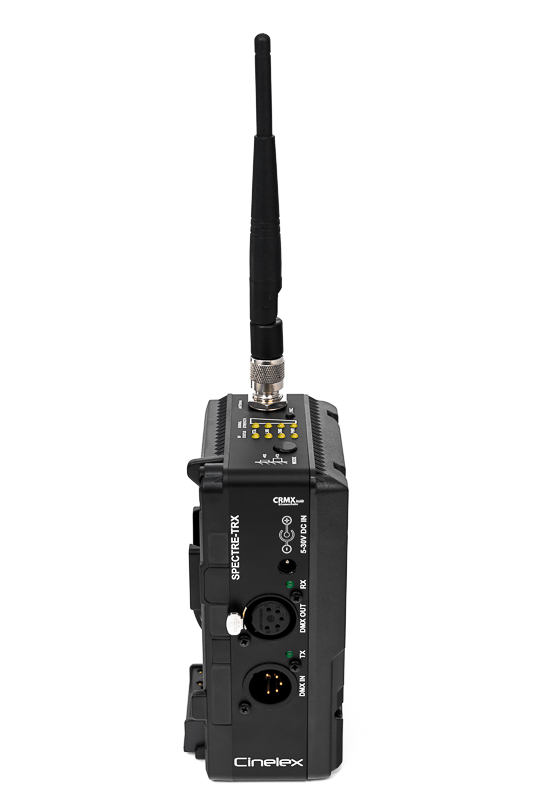

| Connectors | |
| 1x DMX XLR 5-Pin Male | |
| 1x DMX XLR 5-Pin Female | |

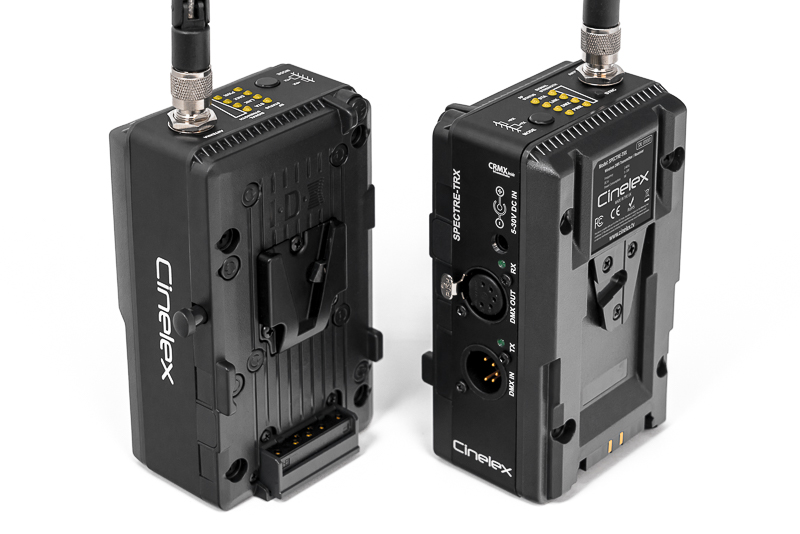

| 1x Battery Plate Male & Female | V-Mount |
| 1x 2.1mm DC-In Power Socket | |

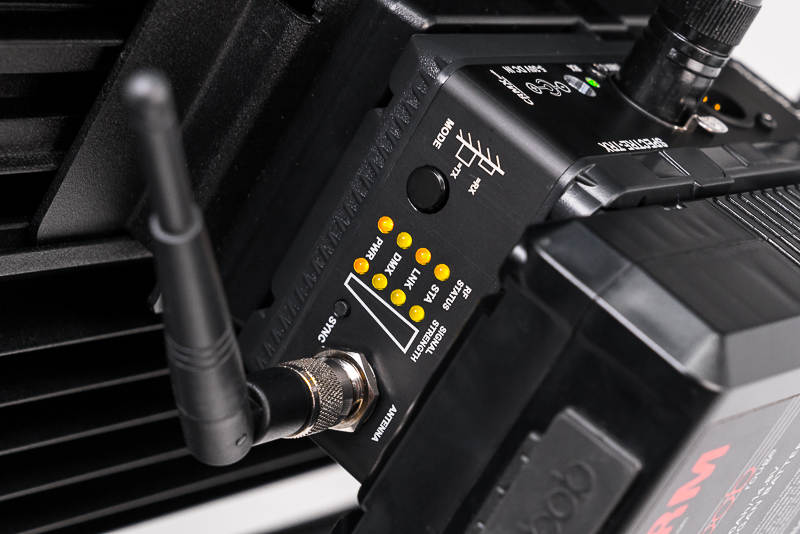

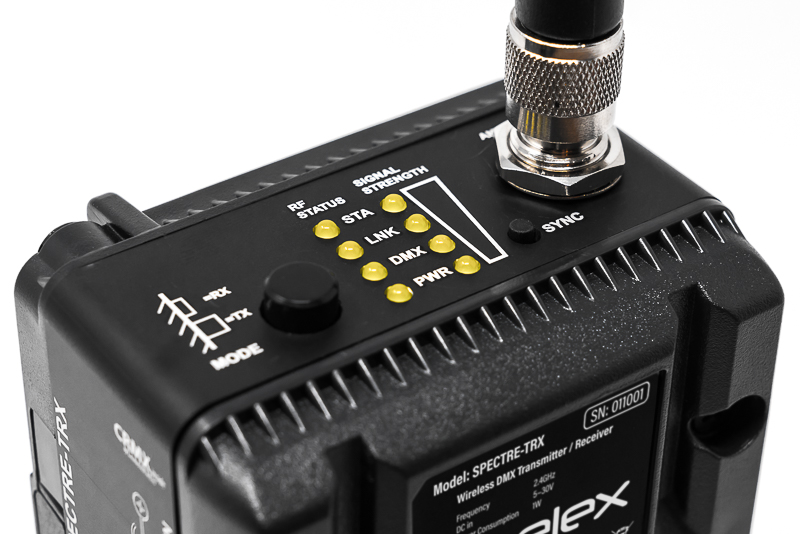

| LED Indicators | |
| 1x “TX” LED | ‘Transmit’ Mode Active |
| 1x “RX” LED | ‘Receive’ Mode Active |
| 1x “PWR” LED | Power Input Confirmation |
| 1x “DMX” LED | DMX Input Confirmation |
| 1x “LNK” LED | Synchronisation Status |
| 1x “STA” LED | Connection Status |
| 4x “SIGNAL STRENGTH” LEDs | Signal Strength Indicator (“RX” Mode) |
| Size (without Antennae) | |
| Weight | 370g |
| Dimensions | 155mm x 90m x 65mm (L x W x D) |
