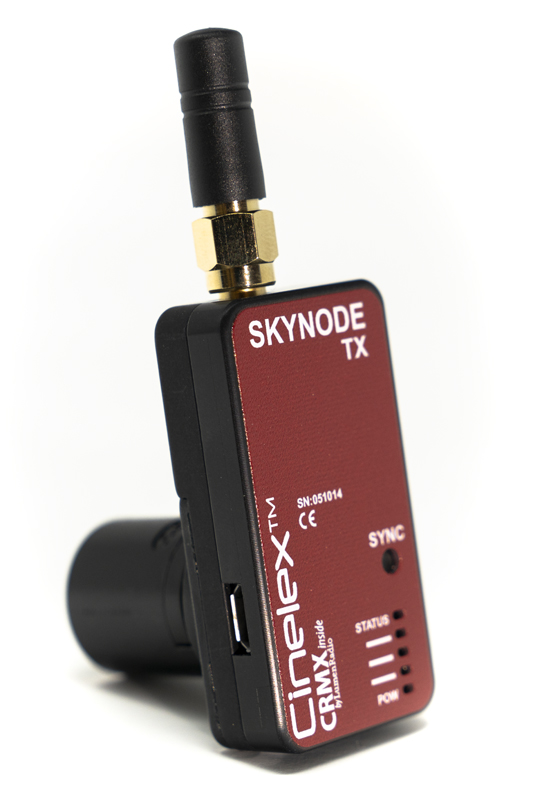

SKYNODE-TX
Plug & Play Wireless DMX Transmitter
GO WIRELESS
Add wireless functionality to any DMX control desk, giving a new lease of life to existing equipment.
PLUG & PLAY
Simply insert SKYNODE-TX to the controller’s DMX output XLR connector to get started.
SIMPLE SYNCHRONISATION
Link to any LumenRadio receiver with a single button-press.
SMALL, YET MIGHTY
Compact design ensures clean integration with any DMX controller.
USB-POWERED
Power SKYNODE-TX from any 5V USB source.
Specification
| Wireless Protocol | |
|---|---|
| Protocol | LumenRadio |
| Operational Frequency | 2.4GHz (2402-2480MHz) |
| Range | Up to 100m (environment dependent) |
| DMX Standards | DMX512, DMX512 (1990) & DMX512-A |
| Power | |
| Micro-USB | 5V |
| Power Consumption | 1W |
| Controls | |
| 1x “SYNC” Button | Synchronise SKYNODE-TX with Receiver |
| Connectors | |
| 1x DMX XLR 5-Pin Male | |
| 1x Micro-USB Power Input Female | |
| 1x Built-In Antennae | |
| LED Indicators | |
| 1x “STATUS” LED | Connection Status |
| 1x “POW” LED | Power Input Confirmation |
| Size (with Antennae) | |
| Weight | 53g |
| Dimensions | 80mm x 26mm x 38mm (L x W x D) |
